Flexmesh Bridge Stairway Stainless Steel Cable Rope Netting For Balustrade Infill System
Product Description:
Stainless steel cable rope mesh give balustrades infill and railings syatem a sense of elegance, space and style. With careful planning and design, they have the ability to totally transform the look. The clean and simple lines of the stainless steel cable rope mesh for balustrade infill system create a sleek and modern aesthetic, while offering uninterrupted views. They are contemporary, low-maintenance, It is surprisingly easy and fast to install.
| Material | Stainless Steel 304 , 316 , 304L , 316L |
| Mesh Type | Ferruled and kontted type |
| Application | Balustrade infill mesh,architectural net,protection nets,anti-fall safety nets,railing infill mesh,balcony mesh,zoo enclosure,green wall,plant climbing trellis mesh,etc. |
| Advantages | Durable,strong and flexible,soft and long service life,high tensile,safety,x-tend,support customization |
| Cable Structure | 7*7,7*19 |
| Surface Treatment | Polish,pvc coated |
| Mesh Size | 0.8x50m,1x1m,1x2m,1x5m,1.5x1m,1.5x3m,2x3m,2x6m,support customization |
| Mesh Opening Shape | Diamond |
| Wire Diameter | 1.2mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm |
| Mesh Opening | 25x25mm,30x30mm,40x40mm,50x50mm,60x60mm,80x80mm,100x100mm |
| Color | White,stainless steel primary color,black,red,blue,custom |
| Sample | Free,but the customer need to pay for the shippingcost |
| Certificate | CE,SGS |
Stainless Steel Wire Rope Mesh Net Parameters :
SS 304 316 stainless steel wire rope mesh net is the important method for staircase fall protection, it's made of flexible stainless steel wire ropes, suitable for each stairs with different grades, angles etc, especially for the oblique courses of stairs or spiral staircases.
| Stainless Steel Cable Rope Netting |
| Item | Rope Diameter | Mesh Hole Size | Normal Break |
| | inch | mm | inch | mm | lbs |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
Different Mesh Types :
There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter - woven type.You can choose anyone you prefer.
| Mesh Types | Wire Diameter | Cable Structure | Details | Material |
| Knotted Type | 1.2mm,1.5mm,1.6mm,2.0mm | 7*7 |  | SS304,SS304L,SS316,SS316L |
| Ferruled Type | 1.2mm,1.5mm,1.6mm,2.0mm | 7*7 |
| Knotted Type | 2.0mm,2.5mm,3.0mm,3.2mm,4.0mm | 7*19 |  |
| Ferruled Type | 2.0mm,2.5mm,3.0mm,3.2mm,4.0mm | 7*19 |
Mesh Orientation : Horizontal and Vertical
Main Applications:
- Safet net
- Architectural mesh
- Balustrading
- Guarding
- Partitioning
- Heli-pad surround
- Glass protection
- Observation platform safety
- Suspension Bridge Railing Mesh
- Skylight opening safety – fall prevention

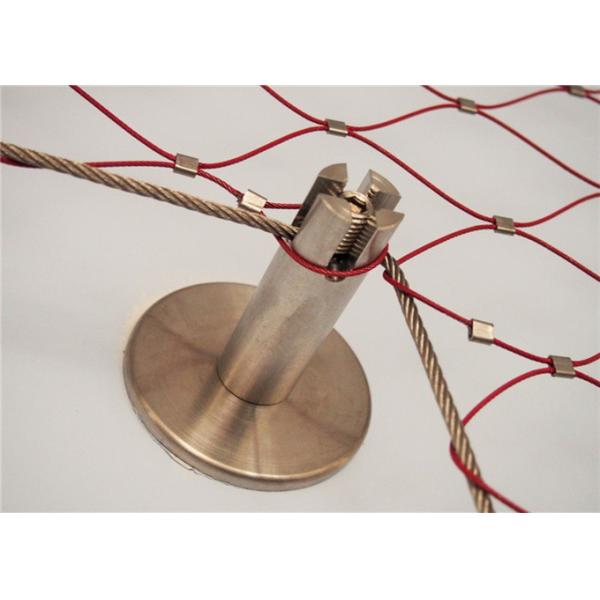

Installation accessory:
Packing And Delivery Details :
-
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
-
Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.
-
As customer's requirements
FAQ:
Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be provided anytime. If unavailable, need to customize.
Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as the stainless steel wire rope mesh,decorative net,metal aluminum mesh.We have a professional production line of metal wire mesh .
Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope mesh products. Different application scenarios of rope mesh comes with different accessories,we will provide you with a detailed installation scheme.
Q : Which countries do you export to?
A : Our products are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
